Thuis /Producten/Mechanische weefgetouwen/TONGDA Smart Medical Gauze Machinery Air Jet Weaving Loom

TONGDA Smart Medical Gauze Machinery Air Jet Weaving Loom

1 Set
MOQ
$20,000.00(>=1 Sets)
Prijs
TONGDA Smart Medical Gauze Machinery Air Jet Weaving Loom
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: air jet loom
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Gear
Condition: New
Type: Air Jet Loom
Application: medical gauze
Production Capacity: 99.99%
Dimension(L*W*H): 3050 or 3200 or 3600 X 1540 mm
Weight: 1.3 KG
Power: 1.5-4.5kw
Warranty: 1 Year, 12 Months
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas
Reed width: 135~190cm
Feeder: Single Nozzle Electronic Feeder
Shedding: crank opening with two pieces heald frame
weft supply: single steel tube nozzle, pipe-shaped reed
Let-off:: Mechanical
Take up:: inside Max.520, Outside Max.1200
After Warranty Service: Video technical support
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard wooden cases with water & rust & pendulum proof
Supply Ability: 200 Set/Sets per Month
Productomschrijving
Product Description

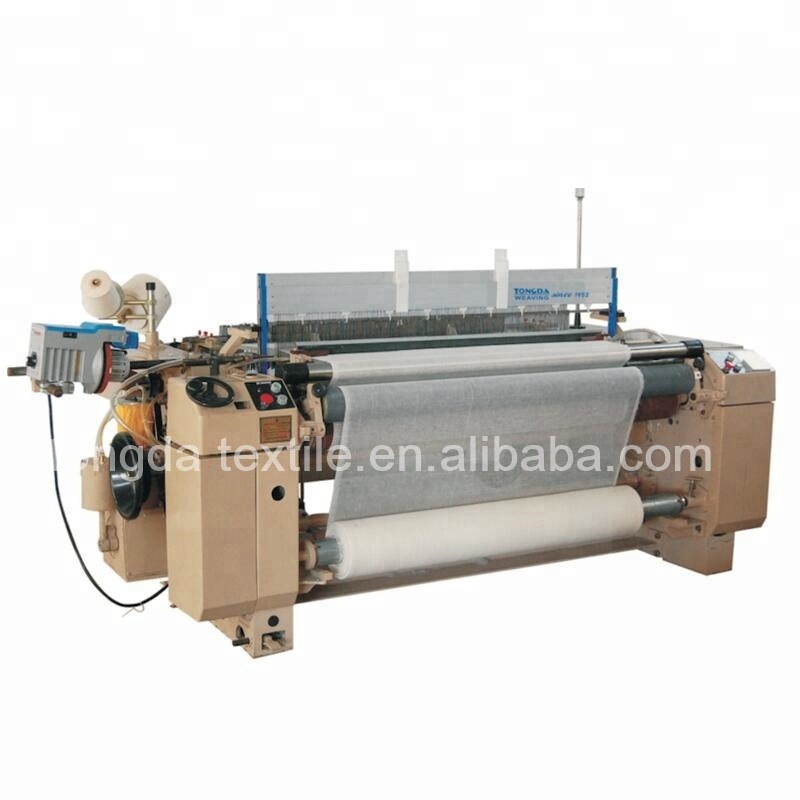

TONGDA Smart medical gauze weaving machinery air jet loom


TDA-708 is innovated and developed based on existing advanced design to replace shuttle loom which has many short-comings as low efficiency, high failure rate, complex processes and much labor. This model is suitable to weave 21-40 lines absorbent gauze (sizing free). The frame and supporter bar of high rigidity reduced vibration, adding more to stability. High level of electronic automation system is able to display working efficiency and production volume of each shift. You can also set the machine to auto stop at  certain production length. The model is designed with advanced air jet cutter which leaves smooth edges, improving fabric quality.

The adoption of single nozzle electric feeder improves machine-start rate, saving weft. Main transmission parts are lubricated in oil bath, reducing maintenance cost. Air is supplied by double air pump, which reduces cost in comparison with centralized air supply. What's more, this model eliminates weft and yarn rolling and fabric cloth, thus reducing labor cost.


Main Specification
Air supply type
central air supply
Reed space
170,190,200,230cm
Weft selection
electronic single or double nozzles
Shedding
crank
Take up
mechanical or electronic
Let -off
mechanical
weft supply
single colr, two color, four- color mixed free weft
Stops
6 lines of electronic stopping device
Selvage
planetary gear
Cutter
mechanical
Speed
400~600r/min
Motor power
1.8kw, 3.3kw

Advantages:

Detailed Images
Packing & Delivery
Our Company
Exhibition
FAQ

Q: Why choose our company?

 A: Our History:TONGDA Textile machinery Group was establish in 1952.Now have more than 60 years old history.

Main Products:TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame,roving frame,weaving machine(water Jet loom/Air jet loom/rapier Loom),warping machine, quilting machine and non-woven machine.
Product /Quality Guarantee:All the Machine have 1 year Quality Guarantee.

Q: How long is your delivery time?

 A: Generally 30 days after receipt of first payment, it is according to quantity.

Q: What is your terms of payment ?

 A: Payment <=1000 USD, 100% in advance. Payment >=1000 USD, 30% T/T in advance ,balance before shippment. We accept T/T and L/C.


If you have another question, pls feel free to contact us as below:
