Thuis /Producten/Loom weefmachine/Brand New Weaving Machinery Label Weaving Machine Electronic Label Loom Label Loom

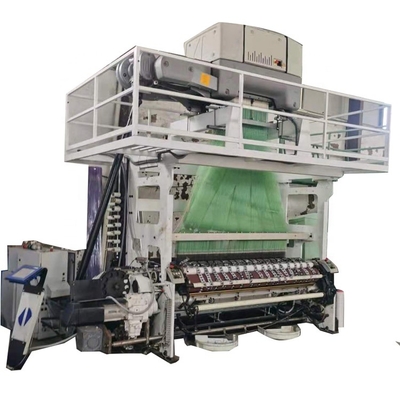

Brand New Weaving Machinery Label Weaving Machine Electronic Label Loom Label Loom

1 Piece
MOQ
$60,000.00(1 - 4 Pieces) $50,000.00(>=5 Pieces)
Prijs
Brand New Weaving Machinery Label Weaving Machine Electronic Label Loom Label Loom
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Weaving machines, label loom, Label Weaving Machine
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition: New
Type: label loom
Production Capacity: 600-900RPM
Dimension(L*W*H): W600cm*H390cm*D220cm
Weight: 500 KG
Power: 2.2W
Warranty: 1 Year
Key Selling Points: High speed and efficiency
Quality: High-quality
Color: Green
Provided: Free spare parts
Service Provided: Online support
After-sales Service Provided: Field installation, commissioning and training
Name: label loom
Keywords: recondition label loom
Model: label loom
Machine type: recondition label loom
MOQ: 1set
Basis informatie
Model Number: label loom
Betalen & Verzenden Algemene voorwaarden
Packaging Details: wooden case
Productomschrijving
Products Description
name
recondition label loom
place of production
made in china
warranty
one year
quality
high quality
model
Chinese 501 loom with Chinese head/ label loom
1.New harness set
4.New control box (Made in China)
3.New cutting system (Made in China)
4.loom width:190cm
5.RPM:450 to 480
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.
Base loom
--Loom : Chinese 501 loom
--Speed: 450rpm~ 480rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)

Jacquard
--Model:Chinese jacquard
--Hooks:1408 hooks
--Control System:chinese control system
--Power:0.8KW
--Weight:800KG
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.

Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald

Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers

Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning


Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 6500kg(total)
Product packaging
Certifications
Trade shows
Company Profile

Goodfore Tex Machinery Co., Ltd. is a rising high-and-new technology enterprise. We are engaged in studying and producing spare
parts of imported jacquard,label and carpet machines.
Our main products are as harness set,slolenoid,jacquard module, pulley, steel hook, kinds breadboards,display,gripper,slitter and
etc.

They are widely applied in jacquard /rapier /label /air-jet machines.Our complete harness set
is applicated for different brands jacquard machine.
We are devoted to absolute sincerity cooperation and determined to make progress
FAQ
Are you a factory or trading company ?
yes ,we are trading company and we also have own factory
Where is your main market ?
12years ,our main markets are in Asia ,Europe ,North America
Can I get free samples from your factory ?
Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
If products have some quality problem ,how would you deal with?
We will responsible for all the quality problem if this had happed .
Where is your factory located?How can I visit there ?
Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
What is the delivery time of your products ?
Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
factory has gained ISO991 certification
